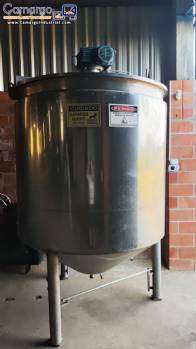

| 3,500 L stainless steel jacketed reactor tank |
|
Jacketed reactor stainless steel tank with mixing system.
Reactor tank for viscous foods, human cosmetics and pet cosmetics, sanitizing products and other products and industries that work with 304 stainless steel.
Approximate estimated total volume: 3,500 L total.
Conical bottom.
With warm-up shirt.
It has 3 feet for support.
Single split lid.
Internal and external parts and feet and structure in stainless steel.
Central axis agitation system, paddles to the bottom and sides.
Reducer:
Manufacturer brand: Cestari.
Rotation: 1,750 r.p.m
Reduction: 50.
Electric motor.
Manufacturer brand: WEG
With 10 HP and
Rotation:1760 R.P.M,
Voltage: 220 V and 380 V.
Approximate dimensions:
Total external diameter (with liner): 1600 mm / 1700 mm.
Internal height of cylindrical part (ignoring conical bottom): 1600 mm.
Height of the conical part: 500 mm. |
|
|
Components:
Cestari, WEG
|
|
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
