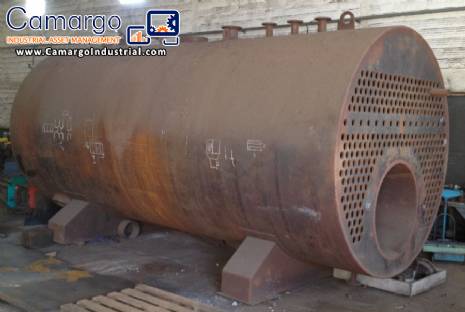

| Steam boiler for 12,000 kg / h SFW |
|
Steam boiler.
Convective body of the boiler, only sheet structure.
New equipment without use.
Brand: SFW Thermic Systems.
Year: 2014.
Capacity: 12,000 kg / h.
Pressure: 8 kgf / cm².
Outside diameter (mm): 2.680.
Length (mm): 6,000.
Maximum working pressure (kg / cm²): 08.
Pressure vessel construction material: ASTM-A-285-C steel plate.
Sheet thickness (mm): 15,87.
Number of mirrors: 4 Being 2 structural welded in the body and 2 internal to support the pipe.
Number of tubes: First pass: 159 units Second pass: 105 units.
Diameter of the tubes (mm): 76.2.
Number of passes: 3.
1st Pass - Fire Bush: Diameter 1.000 mm x 6.000 mm.
Exchange surface: 18.84 m².
2nd Pass - Tubular Beam: 105 tubes Diameter 3 "" with 6 meters Swap Surface: 150.34 m².
3rd Pass - Tubular Beam: 159 tubes Diameter 3 "" with 6 meters Swap Surface: 227.66 m².
Thermal exchange surface (m²): 396,84.
FOR BURNING FIRE AND / OR BIOMASSAS: Furnace steam production to be coupled (kg / cm²): 1.980.
Total steam production of the furnace-chair assembly (Kg / cm²): 11,900.
Boiler steam production (Kg / h): 9,921.
OR MAY BURN FUEL OIL.
Heat exchange area (m²): 396.84.
Steam production (kg / hr): 13,095. |
Brand:
SFW
|
|
|
|
|
|
