Used machines for sale
 Pharmaceutical industry drying oven
Main brands:
Almapal, Baumer, Dong il Machine, Fabbe, Fanem, Grantham Engineering, Hogner, Italvacuum, Lawes, Leboc, Treu, WFA
|
| Pharmaceutical industry drying oven |
A granulate drying oven plays an important role in the veterinary pharmaceutical and nutraceutical industries, being an essential tool for the preparation and processing of products in these areas. Here is what a granulate drying oven is for in these sectors:
Drying of Medicinal Granules: In the veterinary pharmaceutical and nutraceutical industry, many products are formulated in the form of granules. These granules may contain active ingredients, excipients and other components. A drying oven is used to remove moisture from these granules, which is essential to ensure the stability and quality of the final product.
Quality Preservation: Moisture in pharmaceutical and nutraceutical products can lead to degradation of active ingredients, negatively affecting product effectiveness. Controlled drying helps preserve the quality of these products, extending their shelf life and maintaining the appropriate concentration of active ingredients.
Preparation for Compression: In many cases, dry granules are used as raw material for the production of tablets and capsules. Drying is a critical step before the compression process, as the presence of moisture can harm the integrity of the tablets.
Improved Stability: Removing moisture from granules improves product stability, reducing the likelihood of growth of microorganisms, such as bacteria and fungi, which can compromise the quality and safety of pharmaceutical and nutraceutical products.
Preservation of Nutraceuticals: In nutraceutical products such as dietary supplements, oven drying helps maintain the integrity of active ingredients such as vitamins, minerals and plant extracts to ensure they provide the desired benefits to consumers.
Elimination of Moisture in Excipients: In addition to active ingredients, many formulations in the pharmaceutical and nutraceutical industry include excipients (inactive materials), which may also contain moisture. Drying the excipients helps ensure the uniformity and quality of the final product.
The operation of a granulate drying oven in the veterinary pharmaceutical and nutraceutical industry is similar to that mentioned previously. It uses a controlled heating system to remove moisture from the granules, followed by air circulation, monitoring and automatic control systems to ensure drying conditions are ideal. The objective is to obtain high quality dry granules, free from excessive moisture, for use in the production of pharmaceutical and nutraceutical products. |
|
|
|
 |
Brand: Fabbe
Drying oven for granules.
Manufacturer/brand: Fabbe.
With 13 stainless steel trays.
Capacity for 14 trays.
It has an exit dumper.
Exhaust blower at the bottom.
There are 12 resistances at the bottom of the stove.
Steam thermos a... |
|
|
 |
Brand: Lawes
Oven for drying powders and granules, with air circulation and control panel.
Circulating heating oven in stainless steel.
Manufacturer: Lawes.
Voltage: 220V.
With capacity for 15 trays.
It has 12 stainless steel trays.
With smooth ... |
|
|
 |
Brand: Grantham Engineering
Stainless steel stove.
Brand name: Grantham Engineering.
With trolleys and trays.
For the food industry, pharmaceutical, animal health and cosmetics and beauty products.
With 3 trolleys.
Each cart with 30 trays and frame in stainless s... |
|
|
 |
Brand: Italvacuum
Vacuum oven with carbon steel structure and stainless steel internally.
Manufacturer: Italvacuum (Italy).
It has a cooling, heating and vacuum system (complete).
For the food industry, pharmaceuticals, animal health, cosmetics and beauty pro... |
|
|
 |
Brand: WFA
Greenhouse for drying.
With 2 doors, all stainless steel, capacity of 50 trays and 250 Kg, to non alcoholic products.... |
|
|
 |
Brand: Lawes
Drying oven.
Brand: Lawes.
Electrical.
Voltage: 220 V.
Stainless steel interior.... |
|
|
 |

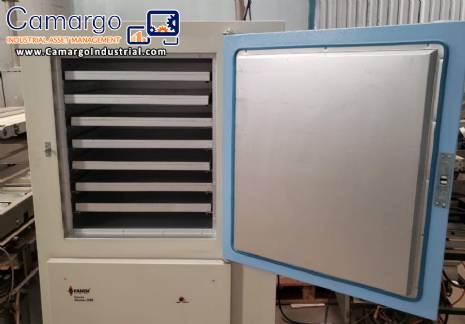

Brand: Fanem
Oven for drying granulated powders.
Brand: Fanem.
Model: 330.
With 7 square trays.
Greenhouse measurements:
Tray measure: 35mm x 485mm x 485mm. (height x width x depth).
Total height: 1500 mm.
Depth/Side width: 640 mm.
Front w... |
|
|
 |
Brand: Almapal, Hogner
Components: Danfoss, Festo, Phoenix Contact, Saia-Burgess, Schneider, Telemecanique
Pharmaceutical drying oven.
Brand: Hogner.
Model: Dryer 8001 E / SP Anti-explosive.
Year: 2009.
Tray dimension: 880 mm x 880 mm x 40 mm (Width x Length x Height).
Width: 980 mm.
Height: 1750.
Depth: 1,000 mm.
Volume: 1715 m³.
... |
|
|
 |

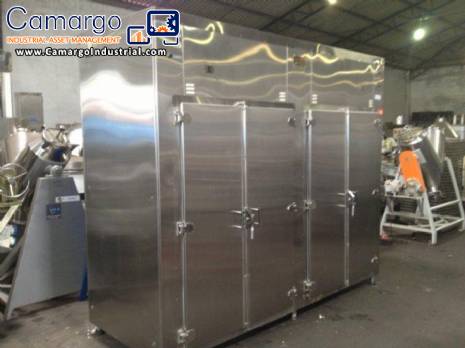

Brand: Leboc
Stainless steel drying oven.
With 50 trays.
Forced air circulation.
With control panel.
Brand: Leboc.
... |
|
|
 |
Brand: Dong il Machine
Stainless steel stove with 2 doors of 1200 mm and capacity for 16 trays.
Brand Name: Dong Il Machine.
Front: 2550 mm.
Height: 2170 mm.
Depth: 950 mm.... |
|
|
 |

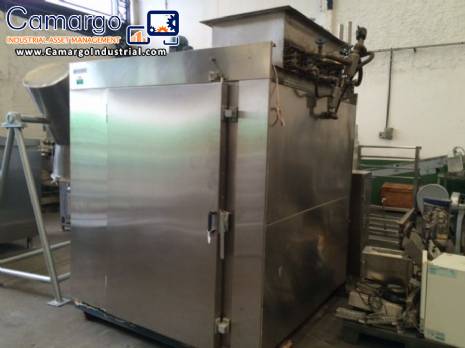

Brand: Baumer
Industrial steam stove.
Mark Baumer.
With 50 trays.... |
|
|
 |
Brand: Treu
Pharmaceutical drying oven.
Brand Name: Treu.
Capacity: 800 l.
for 50 trays.
Dimension: 2.40 m x 2.55 m x 1.15 m.... |
|
|
 |
Oven for drying granulated powders with 100 trays.
Capacity: With 4 stainless steel carts, with 25 trays each, measuring 780 mm x 570 mm x 4 mm.... |
|
|
 |
Brand: Lawes
Drying oven.
Brand: Lawes.
30 stainless steel trays.
Voltage: 380 V.
... |
|
|
 |
Drying ovens granulated powders.
With 6 carts.
Stainless steel.... |
|
|
|
|
